在 BIOS 中设置核显所需的内存量(即 预分配 DVMT,英文: DVMT Pre-Allocated)推荐64M 或者128M

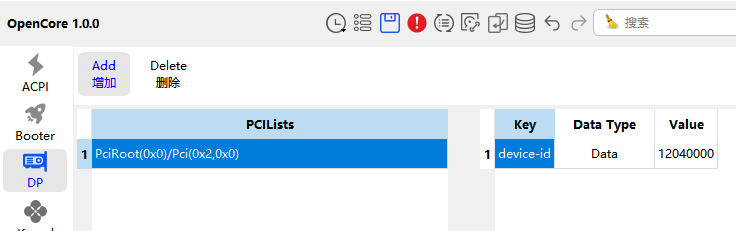

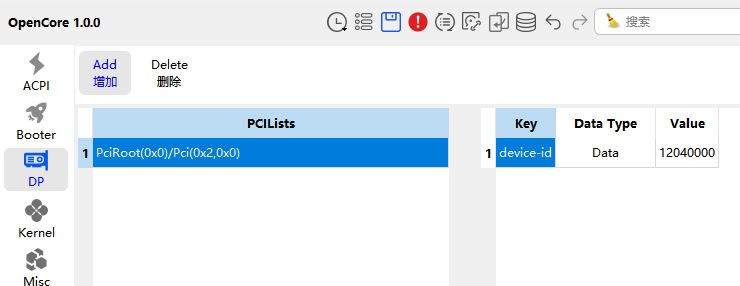

如果BIOS设置不了DVMT需要再核显参数:PciRoot(0x0)/Pci(0x2,0x0)里添加
KEY | Data Type | value |
framebuffer-patch-enable | Data | 01000000 |
framebuffer-fbmem | Data | 00009000 |
framebuffer-stolenmem | Data | 00003001 |

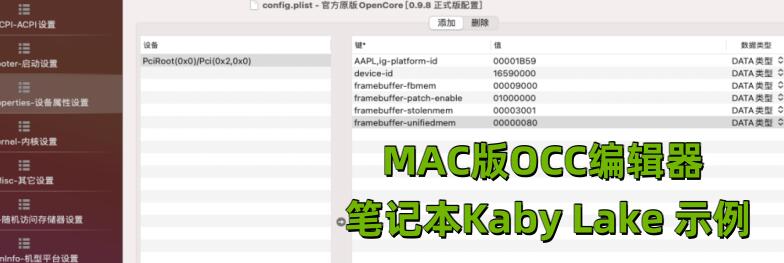

示例
framebuffer-patch-enable:参数注入是否开启 01000000:是
framebuffer-fbmem———-framebuffer-stolenmem :简单理解为DVMT没有设置的替代参数
缓冲帧转换 AAPL,ig-platform-id
数据例子
AAPL,ig-platform-id

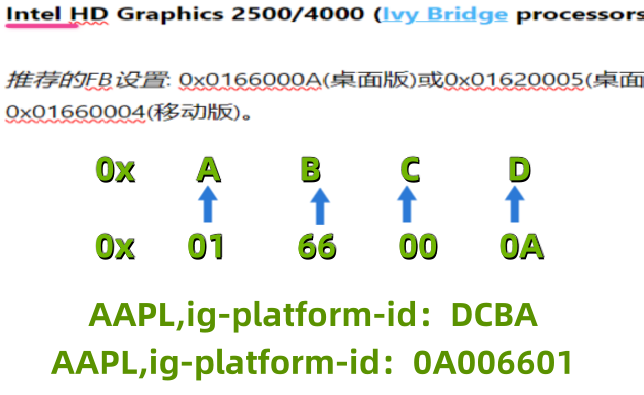

Intel HD Graphics 2500/4000 (Ivy Bridge)平台示例:
假设选择推荐值0166000A
分成4份 :01
66
00
0A
,假设对应ABCD
转换来的值就是 D
,C
,B
,A
:0A 00 66 01

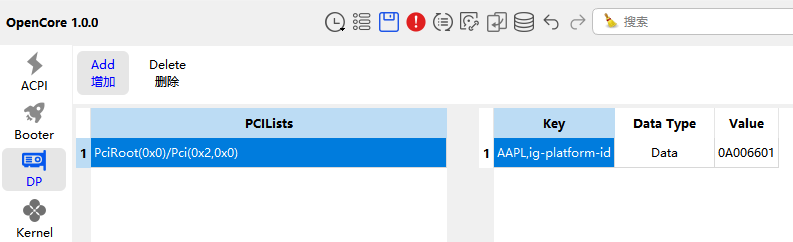

OCC编辑器 OCAT版示例 ↓↓↓↓↓↓↓↓
英特尔 HD 2000/3000(Sandy Bridge )最高系统:10.13
核显仅 HD 3000 可单独工作,2代-3代真不推荐折腾,尤其不支持UEFI的2代的-主板
推荐的帧缓冲区:
- Desktop:桌面:
0x00030010
(default)
- Laptop:笔记本电脑:
0x00010000
(default)
- Empty Framebuffer:空帧缓冲区:
0x00050000
(default)
注意! 在 7 系列芯片组 的主板(即。B75,Q75,Z75,H77,Q77,Z77)
上使用基于
微架构的处理器时
注:如在 Z77
芯片组主板上使用基于
架构的 i7-2600
时),需设定(仿冒)IMEI
的 device-ID
为 3A1C000
。(如下所示)

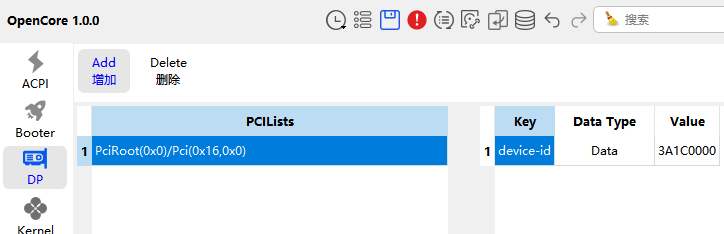

DP>PciRoot(0x0)/Pci(0x16,0x0)
Sandy 平台详细信息(点击此处以展开)
Framebuffer | Type | Connectors | TOTAL |
---|---|---|---|
0x00010000 | mobile | 4 | 32 MB? |
0x00020000 | mobile | 1 | 32 MB? |
0x00030010 | desktop | 3 | 32 MB? |
0x00030020 | desktop | 3 | 32 MB? |
0x00030030 | desktop | 0 | 32 MB? |
0x00040000 | mobile | 3 | 32 MB? |
0x00050000 | desktop | 0 | 32 MB? |
ID: SNB0 0x10000, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 1 MB, MAX STOLEN: 0 bytes, MAX OVERALL: 1 MB (1064960 bytes)
Camelia: CameliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 2, PortCount: 4, FBMemoryCount: 0
[5] busId: 0x03, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000009 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000400, flags: 0x00000009 – ConnectorDP
05030000 02000000 30000000
02050000 00040000 07000000
03040000 00040000 09000000
04060000 00040000 09000000
ID: SNB1 0x20000, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 1 MB, MAX STOLEN: 0 bytes, MAX OVERALL: 1 MB (1052672 bytes)
Camelia: CameliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 2, PortCount: 1, FBMemoryCount: 0
[5] busId: 0x03, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
05030000 02000000 30000000
ID: SNB2 0x30010 or 0x30020, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 1 MB, MAX STOLEN: 0 bytes, MAX OVERALL: 1 MB (1060864 bytes)
Camelia: CameliaUnsupported (255), Freq: 0 Hz, FreqMax: -1 Hz
Mobile: 0, PipeCount: 2, PortCount: 3, FBMemoryCount: 0
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000009 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
02050000 00040000 07000000
03040000 00040000 09000000
04060000 00080000 06000000
ID: SNB3 0x30030, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 0 bytes, MAX STOLEN: 0 bytes, MAX OVERALL: 0 bytes
Camelia: CameliaUnsupported (255), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: SNB4 0x40000, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 1 MB, MAX STOLEN: 0 bytes, MAX OVERALL: 1 MB (1060864 bytes)
Camelia: CameliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 2, PortCount: 3, FBMemoryCount: 0
[1] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000009 – ConnectorDP
01000000 02000000 30000000
02050000 00040000 07000000
03040000 00040000 09000000
ID: SNB5 0x50000, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 0 bytes, MAX STOLEN: 0 bytes, MAX OVERALL: 0 bytes
Camelia: CameliaUnsupported (255), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: SNB6(地址不可用), STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 512 KB, MAX STOLEN: 0 bytes, MAX OVERALL: 512 KB
Camelia: CameliaUnsupported (255), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 1, PortCount: 0, FBMemoryCount: 0
ID: SNB7(地址不可用), STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 0 bytes, MAX OVERALL: 1 MB (1589248 bytes)
Camelia: CameliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 3, PortCount: 4, FBMemoryCount: 0
[1] busId: 0x00, pipe: 0, type: 0x00000400, flags: 0x00000030 – ConnectorDP
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000009 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
01000000 00040000 30000000
02050000 00040000 07000000
03040000 00040000 09000000
04060000 00080000 06000000
缺省 SNB ID, DVMT: 0 bytes, FBMEM: 0 bytes, VRAM: 0 bytes, Flags: 0x00000000
Camelia: CameliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 3, PortCount: 4, FBMemoryCount: 0
[1] busId: 0x00, pipe: 0, type: 0x00000400, flags: 0x00000030 – ConnectorDP
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000009 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
01000000 00040000 30000000
02050000 00040000 07000000
03040000 00040000 09000000
04060000 00080000 06000000
英特尔 HD 核显 2500/4000 (Ivy Bridge processors)/最高系统:11
核显仅HD 4000可单独工作
推荐的帧缓冲区:
- Desktop:桌面:
0x0166000A
(默认)0x01620005
- Laptop:笔记本电脑:
0x01660003
(默认)0x01660009
0x01660004
- Empty Framebuffer:空帧缓冲区:
0x01620007
(默认)
本机支持的 DevIDs :
0x0152
0x0156
0x0162
0x0166
注意!在6系列芯片组的主板(即,H61、B65、Q65、P67、H67、Q67、Z68)
上使用基于
架构的处理器时
注:如在Z68
芯片组主板上使用基于i7-3770
时),需设定(仿冒)IMEI
的device-ID
为3A1E0000
。(如下所示)

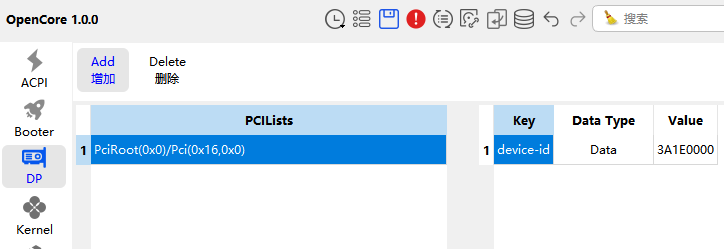

DP>PciRoot(0x0)/Pci(0x16,0x0)
Ivy平台详细信息(点击此处以展开)
Framebuffer | Type | Connectors | TOTAL |
---|---|---|---|
0x01660000 | desktop | 4 | 24 MB |
0x01620006 | desktop | 0 | 0 bytes |
0x01620007 | desktop | 0 | 0 bytes |
0x01620005 | desktop | 3 | 16 MB |
0x01660001 | mobile | 4 | 24 MB |
0x01660002 | mobile | 1 | 24 MB |
0x01660008 | mobile | 3 | 16 MB |
0x01660009 | mobile | 3 | 16 MB |
0x01660003 | mobile | 4 | 16 MB |
0x01660004 | mobile | 1 | 16 MB |
0x0166000A | desktop | 3 | 16 MB |
0x0166000B | desktop | 3 | 16 MB |
ID: 01660000, STOLEN: 96 MB, FBMEM: 24 MB, VRAM: 1024 MB, Flags: 0x00000000
TOTAL STOLEN: 24 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 72 MB, MAX OVERALL: 73 MB (77086720 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 0, PipeCount: 3, PortCount: 4, FBMemoryCount: 3
[1] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000400, flags: 0x00000007 – ConnectorDP
01000000 02000000 30000000
02050000 00040000 07000000
03040000 00040000 07000000
04060000 00040000 07000000
ID: 01620006, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 256 MB, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 0 bytes, MAX STOLEN: 0 bytes, MAX OVERALL: 0 bytes
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 01620007, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 256 MB, Flags: 0x00000000
TOTAL STOLEN: 0 bytes, TOTAL CURSOR: 0 bytes, MAX STOLEN: 0 bytes, MAX OVERALL: 0 bytes
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 01620005, STOLEN: 32 MB, FBMEM: 16 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 16 MB, TOTAL CURSOR: 1 MB, MAX STOLEN: 32 MB, MAX OVERALL: 33 MB (34615296 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 0, PipeCount: 2, PortCount: 3, FBMemoryCount: 2
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000011 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
02050000 00040000 11000000
03040000 00040000 07010000
04060000 00040000 07010000
ID: 01660001, STOLEN: 96 MB, FBMEM: 24 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 24 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 72 MB, MAX OVERALL: 73 MB (77086720 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 3, PortCount: 4, FBMemoryCount: 3
[1] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[2] busId: 0x05, pipe: 0, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
01000000 02000000 30000000
02050000 00080000 06000000
03040000 00040000 07010000
04060000 00040000 07010000
ID: 01660002, STOLEN: 64 MB, FBMEM: 24 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 24 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 24 MB, MAX OVERALL: 25 MB (26742784 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 3, PortCount: 1, FBMemoryCount: 1
[1] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
01000000 02000000 30000000
ID: 01660008, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 16 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 48 MB, MAX OVERALL: 49 MB (51916800 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
01000000 02000000 30000000
02050000 00040000 07010000
03040000 00040000 07010000
ID: 01660009, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 16 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 48 MB, MAX OVERALL: 49 MB (51916800 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
01000000 02000000 30000000
02050000 00040000 07010000
03040000 00040000 07010000
ID: 01660003, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 16 MB, TOTAL CURSOR: 1 MB, MAX STOLEN: 32 MB, MAX OVERALL: 33 MB (34619392 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 2, PortCount: 4, FBMemoryCount: 2
[5] busId: 0x03, pipe: 0, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000407 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000081 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000400, flags: 0x00000081 – ConnectorDP
05030000 02000000 30000000
02050000 00040000 07040000
03040000 00040000 81000000
04060000 00040000 81000000
ID: 01660004, STOLEN: 32 MB, FBMEM: 16 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 16 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 16 MB, MAX OVERALL: 17 MB (18354176 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 1, PipeCount: 3, PortCount: 1, FBMemoryCount: 1
[5] busId: 0x03, pipe: 0, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
05030000 02000000 30020000
ID: 0166000A, STOLEN: 32 MB, FBMEM: 16 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 16 MB, TOTAL CURSOR: 1 MB, MAX STOLEN: 32 MB, MAX OVERALL: 33 MB (34615296 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 0, PipeCount: 2, PortCount: 3, FBMemoryCount: 2
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
02050000 00040000 07010000
03040000 00040000 07010000
04060000 00080000 06000000
ID: 0166000B, STOLEN: 32 MB, FBMEM: 16 MB, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 16 MB, TOTAL CURSOR: 1 MB, MAX STOLEN: 32 MB, MAX OVERALL: 33 MB (34615296 bytes)
Camellia: CamelliaUnsupported (255), Freq: 1808 Hz, FreqMax: 1808 Hz
Mobile: 0, PipeCount: 2, PortCount: 3, FBMemoryCount: 2
[2] busId: 0x05, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[3] busId: 0x04, pipe: 0, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[4] busId: 0x06, pipe: 0, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
02050000 00040000 07010000
03040000 00040000 07010000
04060000 00080000 06000000
英特尔HD核显 4200-5200 (Haswell 处理器)最高系统:Big Sur 11
推荐的帧缓冲区:
- Desktop:桌面:
0x0D220003
(默认)
- Laptop:笔记本电脑:
0x0A160000
(默认)0x0A260005
(推荐)0x0A260006
(推荐)
- Empty Framebuffer:空帧缓冲区:
0x04120004
(默认)
对于桌面版HD 4400以及移动版HD4200/HD4400/HD4600,需设定(仿冒)IGPU
的device-id
为12040000
。(如下所示)
DP>PciRoot(0x0)/Pci(0x2,0x0)
Haswell平台详细信息(点击此处以展开)
Framebuffer | Type | Connectors | TOTAL |
---|---|---|---|
0x0C060000 | desktop | 3 | 209 MB |
0x0C160000 | desktop | 3 | 209 MB |
0x0C260000 | desktop | 3 | 209 MB |
0x04060000 | desktop | 3 | 209 MB |
0x04160000 | desktop | 3 | 209 MB |
0x04260000 | desktop | 3 | 209 MB |
0x0D260000 | desktop | 3 | 209 MB |
0x0A160000 | desktop | 3 | 209 MB |
0x0A260000 | desktop | 3 | 209 MB |
0x0A260005 | mobile | 3 | 52 MB |
0x0A260006 | mobile | 3 | 52 MB |
0x0A2E0008 | mobile | 3 | 99 MB |
0x0A16000C | mobile | 3 | 99 MB |
0x0D260007 | mobile | 4 | 99 MB |
0x0D220003 | desktop | 3 | 52 MB |
0x0A2E000A | desktop | 3 | 52 MB |
0x0A26000A | desktop | 3 | 52 MB |
0x0A2E000D | desktop | 2 | 131 MB |
0x0A26000D | desktop | 2 | 131 MB |
0x04120004 | desktop | 0 | 1 MB |
0x0412000B | desktop | 0 | 1 MB |
0x0D260009 | mobile | 1 | 99 MB |
0x0D26000E | mobile | 4 | 131 MB |
0x0D26000F | mobile | 1 | 131 MB |
ID: 0x0C060000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x0C160000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x0C260000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x04060000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x04160000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x04260000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x0D260000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x0A160000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 2777 Hz, FreqMax: 2777 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x0A260000, STOLEN: 64 MB, FBMEM: 16 MB, VRAM: 1024 MB, Flags: 0x00000004
TOTAL STOLEN: 209 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 209 MB, MAX OVERALL: 210 MB (220737536 bytes)
Camelia: CameliaDisabled (0), Freq: 2777 Hz, FreqMax: 2777 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30000000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 0x0A260005, STOLEN: 32 MB, FBMEM: 19 MB, VRAM: 1536 MB, Flags: 0x0000000F
TOTAL STOLEN: 52 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 116 MB, MAX OVERALL: 117 MB (123219968 bytes)
Camelia: CameliaDisabled (0), Freq: 2777 Hz, FreqMax: 2777 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000087 – ConnectorDP
[2] busId: 0x04, pipe: 9, type: 0x00000400, flags: 0x00000087 – ConnectorDP
00000800 02000000 30000000
01050900 00040000 87000000
02040900 00040000 87000000
ID: 0x0A260006, STOLEN: 32 MB, FBMEM: 19 MB, VRAM: 1536 MB, Flags: 0x0000000F
TOTAL STOLEN: 52 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 116 MB, MAX OVERALL: 117 MB (123219968 bytes)
Camelia: CameliaDisabled (0), Freq: 2777 Hz, FreqMax: 2777 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000087 – ConnectorDP
[2] busId: 0x04, pipe: 9, type: 0x00000400, flags: 0x00000087 – ConnectorDP
00000800 02000000 30000000
01050900 00040000 87000000
02040900 00040000 87000000
ID: 0x0A2E0008, STOLEN: 64 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000021E
TOTAL STOLEN: 99 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 227 MB, MAX OVERALL: 228 MB (239611904 bytes)
Camelia: CameliaV1 (1), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000107 – ConnectorDP
00000800 02000000 30000000
01050900 00040000 07010000
02040A00 00040000 07010000
ID: 0x0A16000C, STOLEN: 64 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000001E
TOTAL STOLEN: 99 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 227 MB, MAX OVERALL: 228 MB (239611904 bytes)
Camelia: CameliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000107 – ConnectorDP
00000800 02000000 30000000
01050900 00040000 07010000
02040A00 00040000 07010000
ID: 0x0D260007, STOLEN: 64 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000031E
TOTAL STOLEN: 99 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 227 MB, MAX OVERALL: 228 MB (239616000 bytes)
Camelia: CameliaDisabled (0), Freq: 1953 Hz, FreqMax: 1953 Hz
Mobile: 1, PipeCount: 3, PortCount: 4, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 11, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[2] busId: 0x04, pipe: 11, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[3] busId: 0x06, pipe: 3, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
00000800 02000000 30000000
01050B00 00040000 07010000
02040B00 00040000 07010000
03060300 00080000 06000000
ID: 0x0D220003, STOLEN: 32 MB, FBMEM: 19 MB, VRAM: 1536 MB, Flags: 0x00000402
TOTAL STOLEN: 52 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 116 MB, MAX OVERALL: 117 MB (123219968 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000087 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000087 – ConnectorDP
[3] busId: 0x06, pipe: 8, type: 0x00000400, flags: 0x00000011 – ConnectorDP
01050900 00040000 87000000
02040A00 00040000 87000000
03060800 00040000 11000000
ID: 0x0A2E000A, STOLEN: 32 MB, FBMEM: 19 MB, VRAM: 1536 MB, Flags: 0x000000D6
TOTAL STOLEN: 52 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 116 MB, MAX OVERALL: 117 MB (123219968 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000011 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000087 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000087 – ConnectorDP
00000800 02000000 11000000
01050900 00040000 87000000
02040A00 00040000 87000000
ID: 0x0A26000A, STOLEN: 32 MB, FBMEM: 19 MB, VRAM: 1536 MB, Flags: 0x000000D6
TOTAL STOLEN: 52 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 116 MB, MAX OVERALL: 117 MB (123219968 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000011 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000087 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000087 – ConnectorDP
00000800 02000000 11000000
01050900 00040000 87000000
02040A00 00040000 87000000
ID: 0x0A2E000D, STOLEN: 96 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000040E
TOTAL STOLEN: 131 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 227 MB, MAX OVERALL: 228 MB (239607808 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 2, FBMemoryCount: 2
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000107 – ConnectorDP
01050900 00040000 07010000
02040A00 00040000 07010000
ID: 0x0A26000D, STOLEN: 96 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000040E
TOTAL STOLEN: 131 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 227 MB, MAX OVERALL: 228 MB (239607808 bytes)
Camelia: CameliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 2, FBMemoryCount: 2
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000107 – ConnectorDP
01050900 00040000 07010000
02040A00 00040000 07010000
ID: 0x04120004, STOLEN: 32 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Camelia: CameliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 0x0412000B, STOLEN: 32 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00000000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Camelia: CameliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 0x0D260009, STOLEN: 64 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000001E TOTAL STOLEN: 99 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 99 MB, MAX OVERALL: 100 MB (105385984 bytes)
Camelia: CameliaDisabled (0), Freq: 1953 Hz, FreqMax: 1953 Hz
Mobile: 1, PipeCount: 3, PortCount: 1, FBMemoryCount: 1
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
00000800 02000000 30000000
ID: 0x0D26000E, STOLEN: 96 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000031E
TOTAL STOLEN: 131 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 323 MB, MAX OVERALL: 324 MB (340279296 bytes)
Camelia: CameliaV2 (2), Freq: 1953 Hz, FreqMax: 1953 Hz
Mobile: 1, PipeCount: 3, PortCount: 4, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
[1] busId: 0x05, pipe: 11, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[2] busId: 0x04, pipe: 11, type: 0x00000400, flags: 0x00000107 – ConnectorDP
[3] busId: 0x06, pipe: 3, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
00000800 02000000 30000000
01050B00 00040000 07010000
02040B00 00040000 07010000
03060300 00080000 06000000
ID: 0x0D26000F, STOLEN: 96 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x0000001E
TOTAL STOLEN: 131 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 131 MB, MAX OVERALL: 132 MB (138940416 bytes)
Camelia: CameliaV2 (2), Freq: 1953 Hz, FreqMax: 1953 Hz
Mobile: 1, PipeCount: 3, PortCount: 1, FBMemoryCount: 1
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000030 – ConnectorLVDS
00000800 02000000 30000000
Native supported DevIDs:
0x0d26
0x0a26
0x0a2e
0x0d22
0x0412
HD 5300-6300 (Broadwell微架构,下文简称BDW)最高系统:Monterey 12
推荐的帧缓冲区:
- Desktop:桌面:
0x16220007
(默认)
- Laptop:笔记本电脑:
0x16260006
(默认)
Broadwell平台详细信息(点击此处以展开)
BDW帧缓冲区列表:
Framebuffer | Type | Connectors | TOTAL |
---|---|---|---|
0x16060000 | desktop | 3 | 32 MB |
0x160E0000 | desktop | 3 | 32 MB |
0x16160000 | desktop | 3 | 32 MB |
0x161E0000 | desktop | 3 | 32 MB |
0x16260000 | desktop | 3 | 32 MB |
0x162B0000 | desktop | 3 | 32 MB |
0x16220000 | desktop | 3 | 32 MB |
0x160E0001 | mobile | 3 | 60 MB |
0x161E0001 | mobile | 3 | 60 MB |
0x16060002 | mobile | 3 | 56 MB |
0x16160002 | mobile | 3 | 56 MB |
0x16260002 | mobile | 3 | 56 MB |
0x16220002 | mobile | 3 | 56 MB |
0x162B0002 | mobile | 3 | 56 MB |
0x16120003 | mobile | 4 | 56 MB |
0x162B0004 | desktop | 3 | 56 MB |
0x16260004 | desktop | 3 | 56 MB |
0x16220007 | desktop | 3 | 77 MB |
0x16260005 | mobile | 3 | 56 MB |
0x16260006 | mobile | 3 | 56 MB |
0x162B0008 | desktop | 2 | 69 MB |
0x16260008 | desktop | 2 | 69 MB |
ID: 16060000, STOLEN: 16 MB, FBMEM: 15 MB, VRAM: 1024 MB, Flags: 0x00000B06
TOTAL STOLEN: 32 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 64 MB, MAX OVERALL: 65 MB (68694016 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30020000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 160E0000, STOLEN: 16 MB, FBMEM: 15 MB, VRAM: 1024 MB, Flags: 0x00000706
TOTAL STOLEN: 32 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 64 MB, MAX OVERALL: 65 MB (68694016 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30020000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 16160000, STOLEN: 16 MB, FBMEM: 15 MB, VRAM: 1024 MB, Flags: 0x00000B06
TOTAL STOLEN: 32 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 64 MB, MAX OVERALL: 65 MB (68694016 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30020000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 161E0000, STOLEN: 16 MB, FBMEM: 15 MB, VRAM: 1024 MB, Flags: 0x00000716
TOTAL STOLEN: 32 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 64 MB, MAX OVERALL: 65 MB (68694016 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30020000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 16260000, STOLEN: 16 MB, FBMEM: 15 MB, VRAM: 1024 MB, Flags: 0x00000B06
TOTAL STOLEN: 32 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 64 MB, MAX OVERALL: 65 MB (68694016 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30020000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 162B0000, STOLEN: 16 MB, FBMEM: 15 MB, VRAM: 1024 MB, Flags: 0x00000B06
TOTAL STOLEN: 32 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 64 MB, MAX OVERALL: 65 MB (68694016 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30020000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 16220000, STOLEN: 16 MB, FBMEM: 15 MB, VRAM: 1024 MB, Flags: 0x0000110E
TOTAL STOLEN: 32 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 64 MB, MAX OVERALL: 65 MB (68694016 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000004, flags: 0x00000004 – ConnectorDigitalDVI
[2] busId: 0x04, pipe: 9, type: 0x00000800, flags: 0x00000082 – ConnectorHDMI
00000800 02000000 30020000
01050900 04000000 04000000
02040900 00080000 82000000
ID: 160E0001, STOLEN: 38 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00000702
TOTAL STOLEN: 60 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 136 MB, MAX OVERALL: 137 MB (144191488 bytes)
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00001001 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00003001 – ConnectorDP
00000800 02000000 30020000
01050900 00040000 01100000
02040A00 00040000 01300000
ID: 161E0001, STOLEN: 38 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00000702
TOTAL STOLEN: 60 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 136 MB, MAX OVERALL: 137 MB (144191488 bytes)
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00001001 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00003001 – ConnectorDP
00000800 02000000 30020000
01050900 00040000 01100000
02040A00 00040000 01300000
ID: 16060002, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00004B02
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 30020000
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 16160002, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00004B02
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 30020000
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 16260002, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00004B0A
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 30020000
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 16220002, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00004B0A
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 30020000
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 162B0002, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00004B0A
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 30020000
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 16120003, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00001306
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131612672 bytes)
Camellia: CamelliaV1 (1), Freq: 1953 Hz, FreqMax: 1953 Hz
Mobile: 1, PipeCount: 3, PortCount: 4, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 11, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 11, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[3] busId: 0x06, pipe: 3, type: 0x00000800, flags: 0x00000006 – ConnectorHDMI
00000800 02000000 30020000
01050B00 00040000 07050000
02040B00 00040000 07050000
03060300 00080000 06000000
ID: 162B0004, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00040B46
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000211 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 11020000
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 16260004, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00040B46
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000211 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 11020000
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 16220007, STOLEN: 38 MB, FBMEM: 38 MB, VRAM: 1536 MB, Flags: 0x000BB306
TOTAL STOLEN: 77 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 153 MB, MAX OVERALL: 154 MB (162017280 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[3] busId: 0x06, pipe: 8, type: 0x00000400, flags: 0x00000011 – ConnectorDP
01050900 00040000 07050000
02040A00 00040000 07050000
03060800 00040000 11000000
ID: 16260005, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00000B0B
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaDisabled (0), Freq: 2777 Hz, FreqMax: 2777 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 11, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 11, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 30020000
01050B00 00040000 07050000
02040B00 00040000 07050000
ID: 16260006, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00000B0B
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Camellia: CamelliaDisabled (0), Freq: 2777 Hz, FreqMax: 2777 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000230 – ConnectorLVDS
[1] busId: 0x05, pipe: 11, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 11, type: 0x00000400, flags: 0x00000507 – ConnectorDP
00000800 02000000 30020000
01050B00 00040000 07050000
02040B00 00040000 07050000
ID: 162B0008, STOLEN: 34 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x00002B0E
TOTAL STOLEN: 69 MB, TOTAL CURSOR: 1 MB, MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109060096 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 2, PortCount: 2, FBMemoryCount: 2
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
01050900 00040000 07050000
02040A00 00040000 07050000
ID: 16260008, STOLEN: 34 MB, FBMEM: 34 MB, VRAM: 1536 MB, Flags: 0x00002B0E
TOTAL STOLEN: 69 MB, TOTAL CURSOR: 1 MB, MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109060096 bytes)
Camellia: CamelliaDisabled (0), Freq: 5273 Hz, FreqMax: 5273 Hz
Mobile: 0, PipeCount: 2, PortCount: 2, FBMemoryCount: 2
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000507 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000507 – ConnectorDP
01050900 00040000 07050000
02040A00 00040000 07050000
Native supported DevIDs:
0x0BD1
0x0BD2
0x0BD3
0x1606
0x160e
0x1616
0x161e
0x1626
0x1622
0x1612
0x162b
HD 510-580 (Skylake微架构,下文简称SKL)最高系统:Monterey 12
推荐的帧缓冲区:
- Desktop:桌面:
0x19120000
(默认)
- Laptop:笔记本电脑:
0x19160000
(默认)
- Empty Framebuffer:空帧缓冲区:
0x19120001
(默认)
注意:在不指定AAPL,ig-platform-id
时,默认使用0x19120000
。
Skylake平台详细信息(点击此处以展开)
SKL帧缓冲区列表:
Framebuffer | Type | Connectors | TOTAL |
---|---|---|---|
0x191E0000 | mobile | 3 | 56 MB |
0x19160000 | mobile | 3 | 56 MB |
0x19260000 | mobile | 3 | 56 MB |
0x19270000 | mobile | 3 | 56 MB |
0x191B0000 | mobile | 3 | 56 MB |
0x193B0000 | mobile | 3 | 56 MB |
0x19120000 | mobile | 3 | 56 MB |
0x19020001 | desktop | 0 | 1 MB |
0x19170001 | desktop | 0 | 1 MB |
0x19120001 | desktop | 0 | 1 MB |
0x19320001 | desktop | 0 | 1 MB |
0x19160002 | mobile | 3 | 58 MB |
0x19260002 | mobile | 3 | 58 MB |
0x191E0003 | mobile | 3 | 41 MB |
0x19260004 | mobile | 3 | 35 MB |
0x19270004 | mobile | 3 | 58 MB |
0x193B0005 | mobile | 4 | 35 MB |
0x191B0006 | mobile | 1 | 39 MB |
0x19260007 | mobile | 3 | 35 MB |
ID: 191E0000, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x0000050F
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Model name: Intel HD Graphics SKL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 19160000, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x0000090F
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Model name: Intel HD Graphics SKL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 19260000, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x0000090F
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Model name: Intel HD Graphics SKL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 19270000, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x0000090F
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Model name: Intel HD Graphics SKL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 191B0000, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x0000110F
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Model name: Intel HD Graphics SKL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 193B0000, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00001187
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Model name: Intel HD Graphics SKL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[2] busId: 0x04, pipe: 10, type: 0x00000800, flags: 0x00000187 – ConnectorHDMI
[3] busId: 0x06, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
02040A00 00080000 87010000
03060A00 00040000 87010000
ID: 19120000, STOLEN: 34 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x0000110F
TOTAL STOLEN: 56 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 124 MB, MAX OVERALL: 125 MB (131608576 bytes)
Model name: Intel HD Graphics SKL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[255] busId: 0x00, pipe: 0, type: 0x00000001, flags: 0x00000020 – ConnectorDummy
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
FF000000 01000000 20000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 19020001, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00040800
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics SKL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 19170001, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00040800
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics SKL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 19120001, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00040800
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics SKL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 19320001, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00040800
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics SKL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 19160002, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00830B02
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Graphics 540
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 19260002, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00E30B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Graphics 540
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 191E0003, STOLEN: 40 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x002B0702
TOTAL STOLEN: 41 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 121 MB, MAX OVERALL: 122 MB (128462848 bytes)
Model name: Intel HD Graphics 515
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000181 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000181 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 81010000
02040A00 00040000 81010000
ID: 19260004, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00030B0A
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109588480 bytes)
Model name: Intel Iris Graphics 550
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7010000
02040A00 00040000 C7010000
ID: 19270004, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00E30B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Graphics 550
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 193B0005, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0023130A
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 137 MB, MAX OVERALL: 138 MB (145244160 bytes)
Model name: Intel Iris Pro Graphics 580
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 4, FBMemoryCount: 4
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
[3] busId: 0x06, pipe: 10, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7010000
02040A00 00040000 C7010000
03060A00 00040000 C7010000
ID: 191B0006, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00131302
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 512 KB, MAX STOLEN: 39 MB, MAX OVERALL: 39 MB (41422848 bytes)
Model name: Intel HD Graphics 530
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 1, PortCount: 1, FBMemoryCount: 1
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
00000800 02000000 98040000
ID: 19260007, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00031302
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109588480 bytes)
Model name: Intel Iris Pro Graphics 580
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7010000
02040A00 00040000 C7010000
Note, that without AAPL,ig-platform-id the following ID is assumed: 19120000
Native supported DevIDs:
0x1916
0x191E
0x1926
0x1927
0x1912
0x1932
0x1902
0x1917
0x193B
0x191B
英特尔(U)HD 核显 610-650 (Kaby Lake and Amber Lake Y 处理器)
最高系统:Ventura 13
推荐的帧缓冲区:
- Desktop:桌面:
0x59160000
(默认)0x59120000
(推荐)
- Laptop:笔记本电脑:
0x591B0000
(默认)
- Empty Framebuffer:空帧缓冲区:
0x59120003
(默认)
对于UHD620(Kaby Lake Refresh)。需设定(仿冒)IGPU
的device-id
为16590000
。(如下所示)
DP>PciRoot(0x0)/Pci(0x2,0x0)
(Kaby Lake and Amber Lake Y)平台详细信息(点击此处以展开)
KBL/ABL framebuffer list:
Framebuffer | Type | Connectors | TOTAL |
---|---|---|---|
0x591E0000 | mobile | 3 | 35 MB |
0x87C00000 | mobile | 3 | 35 MB |
0x59160000 | mobile | 3 | 35 MB |
0x59230000 | desktop | 3 | 39 MB |
0x59260000 | desktop | 3 | 39 MB |
0x59270000 | desktop | 3 | 39 MB |
0x59270009 | mobile | 3 | 39 MB |
0x59160009 | mobile | 3 | 39 MB |
0x59120000 | desktop | 3 | 39 MB |
0x591B0000 | mobile | 3 | 39 MB |
0x591E0001 | mobile | 3 | 39 MB |
0x59180002 | mobile | 0 | 1 MB |
0x59120003 | mobile | 0 | 1 MB |
0x59260007 | desktop | 3 | 79 MB |
0x59270004 | mobile | 3 | 58 MB |
0x59260002 | mobile | 3 | 58 MB |
0x87C00005 | mobile | 3 | 58 MB |
0x591C0005 | mobile | 3 | 58 MB |
0x591B0006 | mobile | 1 | 39 MB |
ID: 591E0000, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000078B
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109588480 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 87C00000, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000078B
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109588480 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 59160000, STOLEN: 34 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00000B0B
TOTAL STOLEN: 35 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 103 MB, MAX OVERALL: 104 MB (109588480 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000800, flags: 0x00000187 – ConnectorHDMI
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00080000 87010000
ID: 59230000, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00030B8B
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 59260000, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00030B8B
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 59270000, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00030B8B
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 59270009, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00830B0A
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7010000
02040A00 00040000 C7010000
ID: 59160009, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00830B0A
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7010000
02040A00 00040000 C7010000
ID: 59120000, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000110B
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[3] busId: 0x06, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
01050900 00040000 87010000
02040A00 00040000 87010000
03060A00 00040000 87010000
ID: 591B0000, STOLEN: 38 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x0000130B
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 136 MB, MAX OVERALL: 137 MB (144191488 bytes)
Model name: Intel HD Graphics KBL CRB
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[2] busId: 0x04, pipe: 10, type: 0x00000800, flags: 0x00000187 – ConnectorHDMI
[3] busId: 0x06, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
02040A00 00080000 87010000
03060A00 00040000 87010000
ID: 591E0001, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x002B0702
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 115 MB, MAX OVERALL: 116 MB (122171392 bytes)
Model name: Intel HD Graphics 615
Camellia: CamelliaV2 (2), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000181 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000181 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 81010000
02040A00 00040000 81010000
ID: 59180002, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics KBL
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 59120003, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics KBL
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 59260007, STOLEN: 57 MB, FBMEM: 21 MB, VRAM: 1536 MB, Flags: 0x00830B0E
TOTAL STOLEN: 79 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203960320 bytes)
Model name: Intel Iris Plus Graphics 640
Camellia: CamelliaDisabled (0), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 59270004, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00E30B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Plus Graphics 650
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 59260002, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00E30B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Plus Graphics 640
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 87C00005, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00A30702
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel UHD Graphics 617
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 591C0005, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00A30702
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel UHD Graphics 617
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 591B0006, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00031302
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 512 KB, MAX STOLEN: 39 MB, MAX OVERALL: 39 MB (41422848 bytes)
Model name: Intel HD Graphics 630
Camellia: CamelliaV3 (3), Freq: 1388 Hz, FreqMax: 1388 Hz
Mobile: 1, PipeCount: 1, PortCount: 1, FBMemoryCount: 1
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
00000800 02000000 98040000
Note, that without AAPL,ig-platform-id the following ID is assumed: 59160000
Native supported DevIDs:
- KBL:
0x5912
0x5916
0x591B
0x591C
0x591E
0x5926
0x5927
0x5923
- ABL:
0x87C0
英特尔 UHD 核显 610-655 (Coffee Lake and Comet Lake 处理器)
最高系统:Ventura 14
推荐的帧缓冲区:
- Desktop:桌面:
0x3EA50000
(默认)0x3E9B0007
(推荐)
- Laptop:笔记本电脑:
0x3EA50009
(默认)
- Empty framebuffer (CFL):空帧缓冲区(CFL):
0x3E910003
(默认)
- Empty framebuffer (CML):空帧缓冲区(CML):
0x9BC80003
(default)
如果您使用的是第9代Coffee Lake Refresh处理器,
则有必要将device-id
编辑为923E0000
伪造IGPU
。从macOS 10.14.4开始,就没有必要了。
DP>PciRoot(0x0)/Pci(0x2,0x0)
核显UHD620 (Whiskey Lake架构) 伪造 device-id
A53E0000
for IGPU
.
Coffee Lake and Comet Lake 平台详细信息(点击此处以展开)
Framebuffer | Type | Connectors | TOTAL |
---|---|---|---|
0x3EA50009 | mobile | 3 | 58 MB |
0x3E920009 | mobile | 3 | 58 MB |
0x3E9B0009 | mobile | 3 | 58 MB |
0x3EA50000 | mobile | 3 | 58 MB |
0x3E920000 | mobile | 3 | 58 MB |
0x3E000000 | mobile | 3 | 58 MB |
0x3E9B0000 | mobile | 3 | 58 MB |
0x3EA50004 | mobile | 3 | 58 MB |
0x3EA50005 | mobile | 3 | 58 MB |
0x3EA60005 | mobile | 3 | 58 MB |
0x3E9B0006 | mobile | 1 | 39 MB |
0x3E9B0008 | mobile | 1 | 58 MB |
0x3E9B0007 | desktop | 3 | 58 MB |
0x3E920003 | desktop | 0 | 1 MB |
0x3E910003 | desktop | 0 | 1 MB |
0x3E980003 | desktop | 0 | 1 MB |
0x9BC80003 | desktop | 0 | 1 MB |
0x9BC50003 | desktop | 0 | 1 MB |
0x9BC40003 | desktop | 0 | 1 MB |
ID: 3EA50009, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00830B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel HD Graphics CFL CRB
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000001C7 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 C7010000
02040A00 00040000 C7010000
ID: 3E920009, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0083130A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel HD Graphics CFL CRB
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[255] busId: 0x00, pipe: 0, type: 0x00000001, flags: 0x00000020 – ConnectorDummy
[255] busId: 0x00, pipe: 0, type: 0x00000001, flags: 0x00000020 – ConnectorDummy
00000800 02000000 98000000
FF000000 01000000 20000000
FF000000 01000000 20000000
ID: 3E9B0009, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0083130A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel HD Graphics CFL CRB
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 3EA50000, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00030B0B
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel HD Graphics CFL CRB
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 3E920000, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000130B
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel HD Graphics CFL CRB
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 3E000000, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000130B
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel HD Graphics CFL CRB
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 3E9B0000, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000130B
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel HD Graphics CFL CRB
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x00000187 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x00000187 – ConnectorDP
00000800 02000000 98000000
01050900 00040000 87010000
02040A00 00040000 87010000
ID: 3EA50004, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00E30B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Plus Graphics 655
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 3EA50005, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00E30B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Plus Graphics 655
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 3EA60005, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00E30B0A
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel Iris Plus Graphics 645
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
00000800 02000000 98040000
01050900 00040000 C7030000
02040A00 00040000 C7030000
ID: 3E9B0006, STOLEN: 38 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00131302
TOTAL STOLEN: 39 MB, TOTAL CURSOR: 512 KB, MAX STOLEN: 39 MB, MAX OVERALL: 39 MB (41422848 bytes)
Model name: Intel UHD Graphics 630
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 1, PortCount: 1, FBMemoryCount: 1
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000498 – ConnectorLVDS
00000800 02000000 98040000
ID: 3E9B0008, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00031302
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 512 KB, MAX STOLEN: 58 MB, MAX OVERALL: 58 MB (61345792 bytes)
Model name: Intel UHD Graphics 630
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 1, PortCount: 1, FBMemoryCount: 1
[0] busId: 0x00, pipe: 8, type: 0x00000002, flags: 0x00000098 – ConnectorLVDS
00000800 02000000 98000000
ID: 3E9B0007, STOLEN: 57 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00801302
TOTAL STOLEN: 58 MB, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 172 MB, MAX OVERALL: 173 MB (181940224 bytes)
Model name: Intel UHD Graphics 630
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[1] busId: 0x05, pipe: 9, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[2] busId: 0x04, pipe: 10, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
[3] busId: 0x06, pipe: 8, type: 0x00000400, flags: 0x000003C7 – ConnectorDP
01050900 00040000 C7030000
02040A00 00040000 C7030000
03060800 00040000 C7030000
ID: 3E920003, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics CFL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 3E910003, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics CFL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 3E980003, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics CFL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 9BC80003, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics CFL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 9BC50003, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics CFL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
ID: 9BC40003, STOLEN: 0 bytes, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00001000
TOTAL STOLEN: 1 MB, TOTAL CURSOR: 0 bytes, MAX STOLEN: 1 MB, MAX OVERALL: 1 MB
Model name: Intel HD Graphics CFL
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 0, PipeCount: 0, PortCount: 0, FBMemoryCount: 0
Note, that without AAPL,ig-platform-id the following ID is assumed: 3EA50000
Native supported DevIDs:
- CFL:
0x3E9B
0x3EA5
0x3EA6
0x3E92
0x3E91
0x3E98
- CML:
0x9BC8
0x9BC5
0x9BC4
英特尔Iris Plus 核显 (Ice Lake 处理器)最高系统::Ventura 14
推荐的帧缓冲区:
- Laptop:笔记本电脑:
0x8A520000
(default)
ICE Lake 平台详细信息(点击此处以展开)
Framebuffer | 类型 | 连接器 | TOTAL |
---|---|---|---|
0xFF050000 | mobile移动的 | 3 | 193 MB |
0x8A710000 | mobile移动的 | 6 | 193 MB |
0x8A700000 | mobile移动的 | 6 | 193 MB |
0x8A510000 | mobile移动的 | 6 | 193 MB |
0x8A5C0000 | mobile移动的 | 6 | 193 MB |
0x8A5D0000 | mobile移动的 | 6 | 193 MB |
0x8A520000 | mobile移动的 | 6 | 193 MB |
0x8A530000 | mobile移动的 | 6 | 193 MB |
0x8A5A0000 | mobile移动的 | 6 | 193 MB |
0x8A5B0000 | mobile移动的 | 6 | 193 MB |
0x8A710001 | mobile移动的 | 5 | 193 MB |
0x8A700001 | mobile移动的 | 5 | 193 MB |
0x8A510001 | mobile移动的 | 3 | 193 MB |
0x8A5C0001 | mobile移动的 | 3 | 193 MB |
0x8A5D0001 | mobile移动的 | 3 | 193 MB |
0x8A520001 | mobile移动的 | 5 | 193 MB |
0x8A530001 | mobile移动的 | 5 | 193 MB |
0x8A5A0001 | mobile移动的 | 5 | 193 MB |
0x8A5B0001 | mobile移动的 | 5 | 193 MB |
0x8A510002 | mobile移动的 | 3 | 193 MB |
0x8A5C0002 | mobile移动的 | 3 | 193 MB |
0x8A520002 | mobile移动的 | 5 | 193 MB |
0x8A530002 | mobile移动的 | 5 | 193 MB |
ID: FF050000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00000300
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203960320 bytes)
Model name: Intel HD Graphics ICL SIM
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000201 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000201 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 01020000
02000000 09000000 01000000 01000000 00040000 01020000
ID: 8A710000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008301
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A700000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00018301
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A510000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008305
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A5C0000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008305
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A5D0000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008301
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A520000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008305
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A530000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008305
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A5A0000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008305
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A5B0000, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x00008301
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203972608 bytes)
Model name: Intel HD Graphics ICL RVP
Camellia: CamelliaDisabled (0), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 6, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[1] busId: 0x02, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x00000281 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
01000000 02000000 01000000 00000000 00040000 81020000
02000000 09000000 01000000 01000000 00040000 81020000
03000000 0A000000 01000000 01000000 00040000 81020000
04000000 0B000000 01000000 01000000 00040000 81020000
05000000 0C000000 01000000 01000000 00040000 81020000
ID: 8A710001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000A300
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
ID: 8A700001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0001A304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
ID: 8A510001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000E304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203960320 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
ID: 8A5C0001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000A304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203960320 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
ID: 8A5D0001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000A300
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203960320 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
ID: 8A520001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000E304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000118 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18010000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
ID: 8A530001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000E304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000118 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18010000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
ID: 8A5A0001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000A304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000118 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18010000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
ID: 8A5B0001, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000A300
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel HD Graphics ICL RVP BigSur
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000118 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18010000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
ID: 8A510002, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000E304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203960320 bytes)
Model name: Intel Iris Plus Graphics
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
ID: 8A5C0002, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000E304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203960320 bytes)
Model name: Intel Iris Plus Graphics
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 3, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000018 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18000000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
ID: 8A520002, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000E304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel Iris Plus Graphics
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000118 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18010000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
ID: 8A530002, STOLEN: 64 MB, FBMEM: 0 bytes, VRAM: 1536 MB, Flags: 0x0000E304
TOTAL STOLEN: 193 MB?, TOTAL CURSOR: 1 MB (1572864 bytes), MAX STOLEN: 193 MB, MAX OVERALL: 194 MB (203968512 bytes)
Model name: Intel Iris Plus Graphics
Camellia: CamelliaV3 (3), Freq: 0 Hz, FreqMax: 0 Hz
Mobile: 1, PipeCount: 3, PortCount: 5, FBMemoryCount: 3
[0] busId: 0x00, pipe: 0, type: 0x00000002, flags: 0x00000118 – ConnectorLVDS
[2] busId: 0x09, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[3] busId: 0x0A, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[4] busId: 0x0B, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
[5] busId: 0x0C, pipe: 1, type: 0x00000400, flags: 0x000002C1 – ConnectorDP
00000000 00000000 00000000 00000000 02000000 18010000
02000000 09000000 01000000 01000000 00040000 C1020000
03000000 0A000000 01000000 01000000 00040000 C1020000
04000000 0B000000 01000000 01000000 00040000 C1020000
05000000 0C000000 01000000 01000000 00040000 C1020000
Note, that without AAPL,ig-platform-id the following REAL ID is assumed: 8A520000
Note, that without AAPL,ig-platform-id the following SIMULATOR ID is assumed: FF050000
Native supported DevIDs:
0xff05
0x8A70
0x8A71
0x8A51
0x8A5C
0x8A5D
0x8A52
0x8A53
0x8A5A
0x8A5B
暂无评论内容
